Smash Series

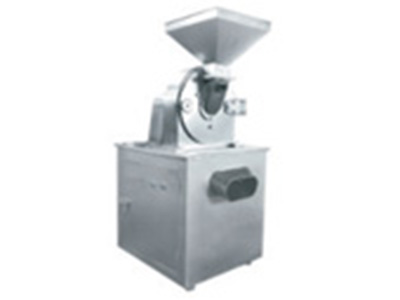

WF-30B China Herb High Speed Grinder
Brief introduction：The machine has stable technical performance , high production capacity and beautine. It has large of application. It can get very ideal result to pulverize the drying fibre material. It is suitable for heat sensitivity materials such as sugar, plastic powder and Chinese traditional medicine.
Detailed description
Applications：
The machine has stable technical performance , high production capacity and beautine. It has large of application. It can get very ideal result to pulverize the drying fibre material. It is suitable for heat sensitivity materials such as sugar, plastic powder and Chinese traditional medicine.
Technical parameters:
Model | 30B |
Main shaft speed (r/min) | 5300 |
Main motor power（kw) | 7.5 |
Clsoing fan motor power（kw) | 0.37 |
Draught fan motor power（kw) | 1.1 |
Inlet material diameter(mm) | 10-40 |
Pulverizing fineness (mesh) | 60-200(Optional adjustment)-General usage |
Pulverizing capacity (kg/h) | 50-250 |
Main engine temperature rising(℃) | ≤65 |
