Sludge drying machine series

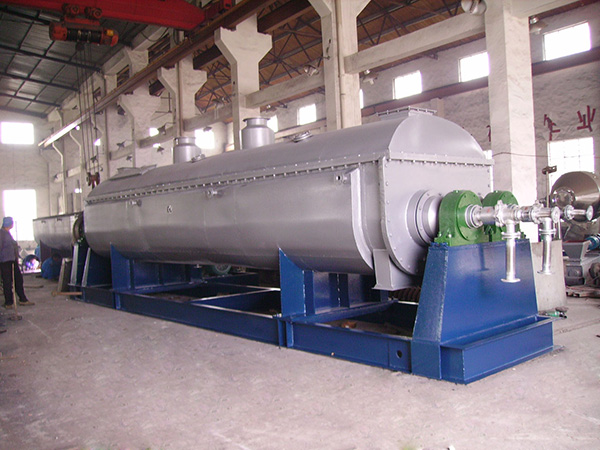

Dedicated sludge dryer
Detailed description
Seoul drying benefits for municipal wastewater treatment plants, dye houses, paper mills, electroplating factories, power plants, chemical plants, sludge generated by dedicated and professional design of the sludge dryer. The early moisture in the sludge is generally 80%, after drying the final moisture of 10% -50%, usually requires about 30% of sludge, dried sludge into a loose granular powder mixed with pulverized coal directly into the boiler combustion, sludge The calorific value of roughly 1500-2000kcal about saving energy and re-use, and some can also be made of dried sludge fertilizer and building materials, or directly to landfill will not cause secondary pollution, turning waste into treasure, full to meet environmental requirements, this device low energy consumption, using steam heat, oil, flue gas heat (evaporation of 1kg of water consumption of steam heat for the 1.1-1.3kg) with low power consumption, stable operation, low noise, small amount of labor etc., basically for the automatic production.
The current corporate environmental awareness increasing, the sludge is a common problem plagued the development of enterprises, our company introduces foreign advanced sludge drying technology, combined with the actual situation to create a dedicated sludge dryer, fully able to meet the requirements of industrial customers, by more and more trust and cooperation of enterprises, and domestic have been a lot of large, medium and small businesses have worked together, I will use sophisticated technology to better serve you, work together to create green earth.
WG series dedicated sludge dryer is the company's new boutique, and even better than similar domestic products, in order to ensure the device's unique characteristics and technical characteristics, technical details made public, if you have this need and technical questions, please contact us, I will provide you solve the difficult problem of sludge, I urge the new and old customers to understand and support.
Specific models, specifications refer to the following table:
Model | Capacity per day | Total power | heat source Heat transfer oil, steam | Overall dimensions of main engine (Length x width x height) | Total equipment weight |
WG-5 | 5T | 7kw | 200℃~220℃ | 4800x900x900 | ~3.5T |
WG-10 | 10T | 11kw | 200℃~220℃ | 6000x1300x1300 | ~5.2T |
WG-15 | 15T | 26kw | 200℃~220℃ | 6800x1500x1500 | ~9T |
WG-20 | 20T | 30kw | 200℃~220℃ | 6900x1600x1600 | ~11T |
WG-25 | 25T | 39kw | 200℃~220℃ | 7500x1700x1800 | ~13T |
WG-30~40 | 30~40T | 67kw | 200℃~220℃ | 8900x2200x2400 | ~18T |
WG-40~50 | 40~50T | 80kw | 200℃~220℃ | 9200x2300x2500 | ~22T |
WG-50~60 | 50~60T | 140kw | 200℃~220℃ | 11000x2800x2800 |
